Shaft And Hub Keyway Dimensions - Bores and Keyways | John King Chains - Wxh key w x t2 keyway british.. To confirm the status of any standard, identify the replacement standard if it is obsolete and/or purchase the standard please use. British standard metric keyways for square and rectangular parallel keys 11 5/16 3/8 7/16 1/2 3/4 3/4 7/8 nominal diameter, d 6 1/2 7 1/2 9 square keys preferred for shaft diameters above this line: American system, the keyway in the hub is dimensioned by the width and the depth at the side, but in the metric system the keyway is dimensioned by the width and the depth measured from the raduis of the shaft to the center of the keyway. Hubs that allow one sprocket or gear to be rotated to match the other after installation on the shaft. Home > knowledge base > standard keyway dimensions.
Engineering hardware design data iso hardware specifications table. Roymech resources keyways bs 46 :1958 square keys and keyway dimensions these pages include various standards. Hubs are aluminum for light weight and good corrosion resistance. 3) keyway fillet radius to be specified by customer. The complete system is called a keyed joint (figure 2).
What are shaft keyways, its characteristics and benefits from engineeringproductdesign.com The bottom of the key is shaped to fit the curved surface of the shaft. The hollow saddle key is a taper key that fits in a keyway in the hub. One half of the key is fitted on the shaft keyway and the remaining upper part is fitted on the hub keyway. 1) unless specified by the customer: (figure 2) keys are made of varied types of materials, and also come in different shapes and sizes. The shaft size and tolerance are adjusted to create the proper fit between the two components. Home > knowledge base > standard keyway dimensions. As shown by the last equation in the box, key stress equals shaft stress when the key (or hub) length is 1.6 times the shaft diameter.
Thread adhesive may be required to ensure that vibration doesn.t cause the

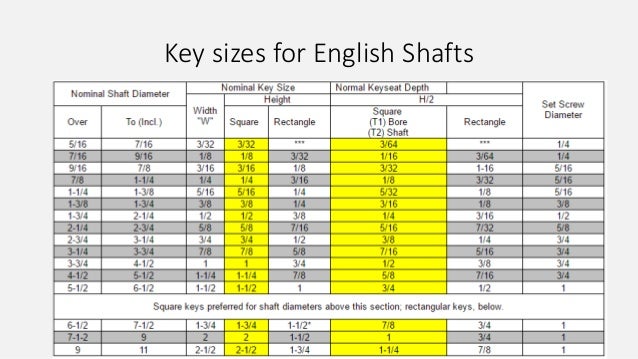

The standard positioning for all keyways will be in line with a tooth. Shaft arbor and keyseat dimensional data ansi b94.19 ; As shown by the last equation in the box, key stress equals shaft stress when the key (or hub) length is 1.6 times the shaft diameter. Specifying english keyways in the english system, it is standard practice to dimension keyways. The key and key seat cross section are iso standardized. Hubs for 1/2 shaft dia. The flat saddle key is a taper key that fits into a keyway in the hub and is flat on the shaft. Surface finish — sides and bottom of keyways shall not exceed 250 micro inches. To confirm the status of any standard, identify the replacement standard if it is obsolete and/or purchase the standard please use. System, the constant is the hub bore. British standard metric keyways for square and rectangular parallel keys 11 5/16 3/8 7/16 1/2 3/4 3/4 7/8 nominal diameter, d 6 1/2 7 1/2 9 square keys preferred for shaft diameters above this line: Shaft keys are made of varied types of materials and also come in different shapes and sizes. Usually the term keyseat is referred as a groove or pocket on a shaft, and a keyway is a slot in a hub in which the key fits into.
Hubs for 1/2 shaft dia. 1) unless specified by the customer: Keyways will be cut to the dimensions in the above table. Clearance fit bores with set screws. The key length should be less than about 1.5 times the shaft diameter to ensure a good load distribution over the entire key length when the shaft becomes twisted when loaded in torsion.
AGMA ASA Keyway and Bores Design Data | Engineers Edge ... from www.engineersedge.com The flat saddle key is a taper key that fits into a keyway in the hub and is flat on the shaft. Specifying english keyways in the english system, it is standard practice to dimension keyways. The key length should be less than about 1.5 times the shaft diameter to ensure a good load distribution over the entire key length when the shaft becomes twisted when loaded in torsion. Roymech resources keyways bs 46 :1958 square keys and keyway dimensions these pages include various standards. Home > knowledge base > standard keyway dimensions. The standard positioning for all keyways will be in line with a tooth. It is most times utilised for light loads. (dimensions comply with din 6885/1) † requires use of chamfered keys.
Wxh key w x t2 keyway british.
Ansi shaft and hub keyseat dimensions for woodruff keys per. As shown by the last equation in the box, key stress equals shaft stress when the key (or hub) length is 1.6 times the shaft diameter. John kings will generally bore all wheels to a h7 tolerance unless specified by the customer. The keyway is machined by partial drilling on the shaft and the hub. System, the constant is the hub bore. 3) keyway fillet radius to be specified by customer. Engineering hardware design data iso hardware specifications table. The key length should be less than about 1.5 times the shaft diameter to ensure a good load distribution over the entire key length when the shaft becomes twisted when loaded in torsion. American system, the keyway in the hub is dimensioned by the width and the depth at the side, but in the metric system the keyway is dimensioned by the width and the depth measured from the raduis of the shaft to the center of the keyway. The hollow saddle key is a taper key that fits in a keyway in the hub. Keyseat design tolerances for electric motors and generators; Clearance fit bores with set screws. The key and key seat cross section are iso standardized.
3) keyway fillet radius to be specified by customer. To confirm the status of any standard, identify the replacement standard if it is obsolete and/or purchase the standard please use. The whole system is called a keyed joint. Thread adhesive may be required to ensure that vibration doesn.t cause the The keyway is easily made by drilling partially in the shaft and hub.
Gib Head Keys and Keyways from www.ecs.umass.edu Arbor keyway cutter hole keyway dimensional data per ansi/asme b94.19 The standard positioning for all keyways will be in line with a tooth. It is most times utilised for light loads. Clearance fit bores with set screws. Parallel keys are most commonly used. 3) keyway fillet radius to be specified by customer. Engineering hardware design data iso hardware specifications table. Parallel keys, keyways, deep pattern
G&g manufacturing company 4432 mckinley street p.o.
To other form locking joints as polygon profiles the key and keyway is: Specifying english keyways in the english system, it is standard practice to dimension keyways. The keyway is easily made by drilling partially in the shaft and hub. A keyed joint may allow relative axial movement between the parts. System, the constant is the hub bore. Since most inch shaft tolerancing is controlled by nema and/or agma, (both standards agree up to 6.00 in dia.) the shaft sizes are known and controlled. The key length should be less than about 1.5 times the shaft diameter to ensure a good load distribution over the entire key length when the shaft becomes twisted when loaded in torsion. 3) keyway fillet radius to be specified by customer. It is most times utilised for light loads. Engineering hardware design data iso hardware specifications table. Roymech resources keyways parallel metric keys and keyway dimensions these pages include various standards. Home > knowledge base > standard keyway dimensions. The whole system is called a keyed joint.
Arbor keyway cutter hole keyway dimensional data per ansi/asme b9419 shaft hub. Nominal shaft diameter ( a ) bottom of keyway to bottom of shaft ( b ) keyway width ( c ) reference depth ( d ) fractional decimal fractional decimal 3/8 0.375 0.322 3/32 0.0938 0.053 7/16 0.4375 0.386 3/32 0.0938
